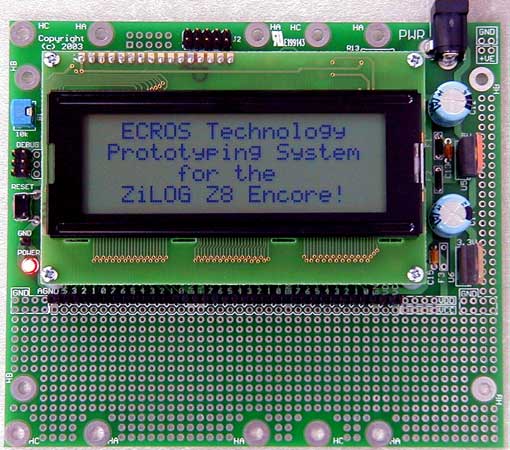

Prototyping System for ZiLOG Z8 Encore!®

Move the mouse cursor over the picture to remove the display and see what's underneath.

Hold the mouse cursor over part of the board for a brief explanation of what's there.


ECROS Technology Home

Links and Resources

Contact ECROS Technology

ZiLOG and Z8 Encore! are registered trademarks of ZiLOG, Inc.
Copyright © 2004, ECROS Technology, all rights reserved.

5 volt regulator 3.3 volt regulator Main expansion connector DC power input, 6 to 16 volts, or 5 volts regulated Prototyping area for serial interface (or other uses) Auxiliary expansion connector I2C serial EEPROMs Two EIA-232-D driver / receiver pairs, one pair wired to TXD/RXD of UART1, the other pair spare Constant current LCD backlight driver under software control Display connector 18.432 MHz crystal oscillator LCD contrast adjustment Main prototyping area Debug port, compatible with ZiLOG ZDS II Reset switch Power LED Z8F64x2 MCU in 68-pin PLCC socket for easy assembly and removal Analog and digital ground join at a well defined point EIA-232-D serial port (10-way ribbon cable to DB9 connects to computer COM port)
